The product Description:

High Efficiency & Space-Saving:

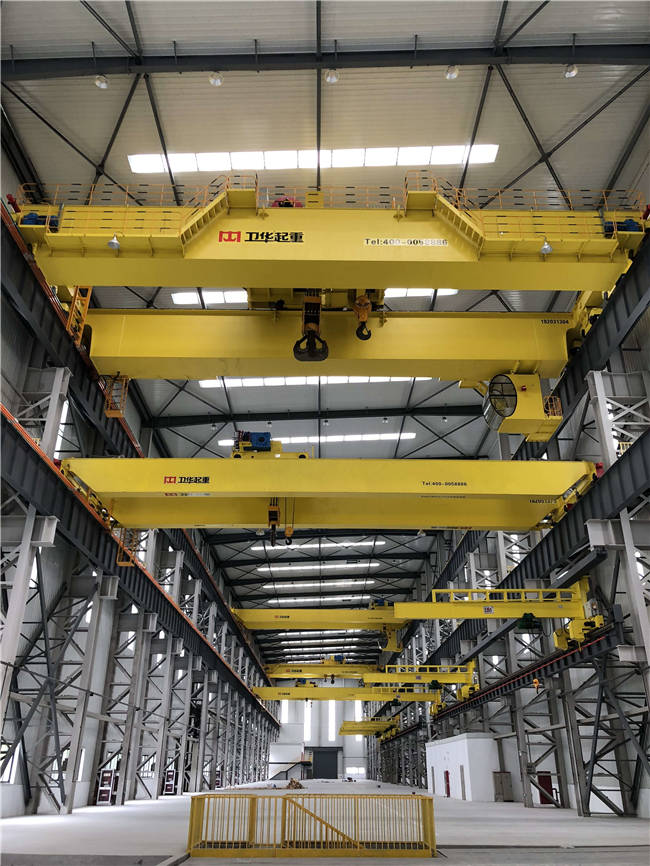

The double-girder design provides greater lifting capacity and stability.

Optimized structure reduces the overall height of the workshop, saving construction costs.

Superior Performance:

Smooth operation, compact structure, and strong rigidity.

Low noise and precise control for enhanced operational efficiency.

Suitable for working environments with temperatures ranging from -25°C to 40°C.

Reliable Hoisting System:

Compatible with CD and MD electric hoists for stable lifting performance.

Rated load capacity: 5t–50t (customizable).

Span: 7.5m–35m (customizable).

Lifting height: 6m–20m (customizable).

Working class: A3, A4, A5, A6.

Flexible Operation Modes:

Multiple operation methods available, including ground control (pendant, remote control) and cabin control.

Customizable Design:

We offer tailored solutions based on customer requirements to meet specific industrial needs.

Data Sheet

-The single-girder gantry crane is divided into two types based on the shape of the legs: L-type and C-type. The frame structure of the gantry crane has three forms: double cantilever, single cantilever, and no cantilever.

-Outdoor cranes are also equipped with wind protection devices such as rail clamps and anchoring systems.

-The steel structure of the crane’s gantry frame mainly consists of one main beam and two legs (for spans ≥ 30m, a combination of one rigid and one flexible leg is used). It also includes the trolley track, lower crossbeam, and other components. The main beam, legs, and lower crossbeam are connected with high-strength bolts.

-The main beam is generally a skewed box beam structure, which, compared to double-girder gantry cranes, has slightly lower overall rigidity.

-The single-girder hook gantry crane is suitable for lifting capacities up to 50t, heights up to 12m, and spans up to 35m.
